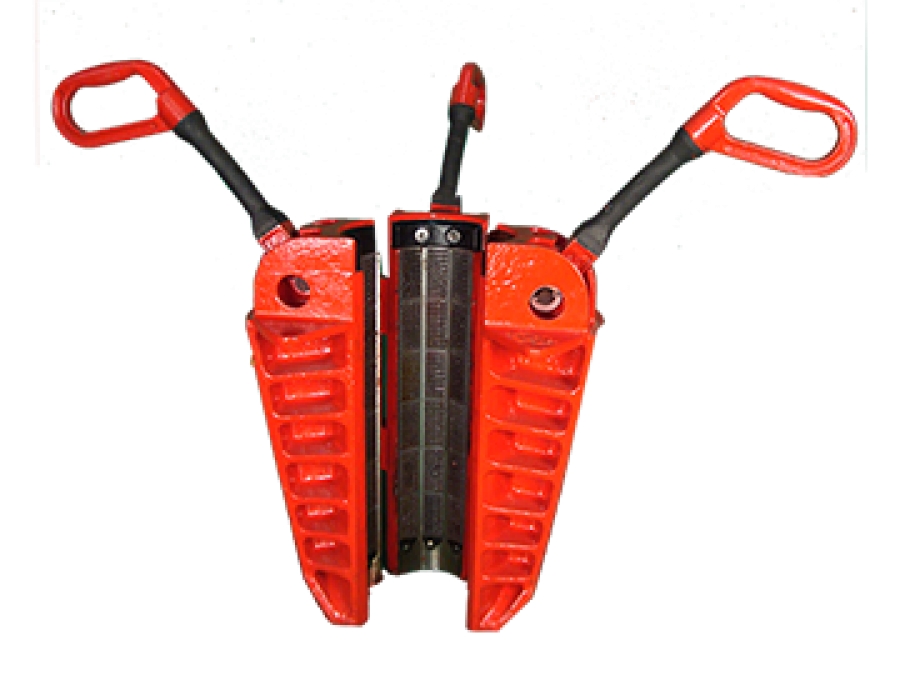

Rotary slips can accommodate drill pipe from 2-3/8"-7" O.D. They are classified as type Ultra-Short (SDS-S), Short (SDS), Medium (SDML) and Extra Long (SDXL) according to gripping length. SDS-S slips and SDS slips are designed for shallow drilling, SDML slips are the perfect choice for all medium depth drilling. SDXL slips are designed for deep drilling.
Type |
Slip Body Size |
|
3-1/2 |
|
|
4-1/2 |
|
|
5 |
|
|
SDS-S |
Pipe Size |
in |
2-3/8 |
2-7/8 |
3-1/2 |
- |
- |
- |
- |
- |
- |
|
Weight |
lb |
87 |
84 |
80 |
- |
- |
- |
- |
- |
- |
SDS |
Pipe Size |
in |
2-3/8 |
2-7/8 |
3-1/2 |
3-1/2 |
4 |
4-1/2 |
4 |
4-1/2 |
5 |
|
Weight |
lb |
117 |
111 |
107 |
143 |
136 |
127 |
- |
- |
- |
SDML |
Pipe Size |
in |
2-3/8 |
2-7/8 |
3-1/2 |
3-1/2 |
4 |
4-1/2 |
4 |
4-1/2 |
5 |
|
Weight |
lb |
193 |
188 |
180 |
207 |
199 |
188 |
204 |
169 |
185 |
SDXL |
Pipe Size |
in |
- |
- |
- |
3-1/2 |
4 |
4-1/2 |
4 |
4-1/2 |
5 |
|
Weight |
lb |
- |
- |
- |
229 |
219 |
205 |
237 |
227 |
213 |
Type |
Slip Body Size |
|
5-1/2 |
|
|
5-7/8 |
|
|
7 |
|
|
SDML |
Pipe Size |
in |
4-1/2 |
5 |
5-1/2 |
5-3/4 |
5-7/8 |
- |
5-7/8 |
6-5/8 |
7 |
|
Weight |
lb |
200 |
185 |
181 |
- |
- |
- |
- |
- |
- |
SDXL |
Pipe Size |
in |
4-1/2 |
5 |
5-1/2 |
5-3/4 |
5-7/8 |
- |
5-7/8 |
6-5/8 |
7 |
|
Weight |
lb |
234 |
224 |
210 |
- |
- |
- |
- |
- |
- |
