Y Series • Slip Type Elevators

The slip type elevator is an indispensable tool in holding and hoisting drilling pipes, casing and tubing in the oil drilling and well tripping operation. It’s especially suitable for the hoisting of integrated tubing sub, integral joint casing and electric submersible pump column.

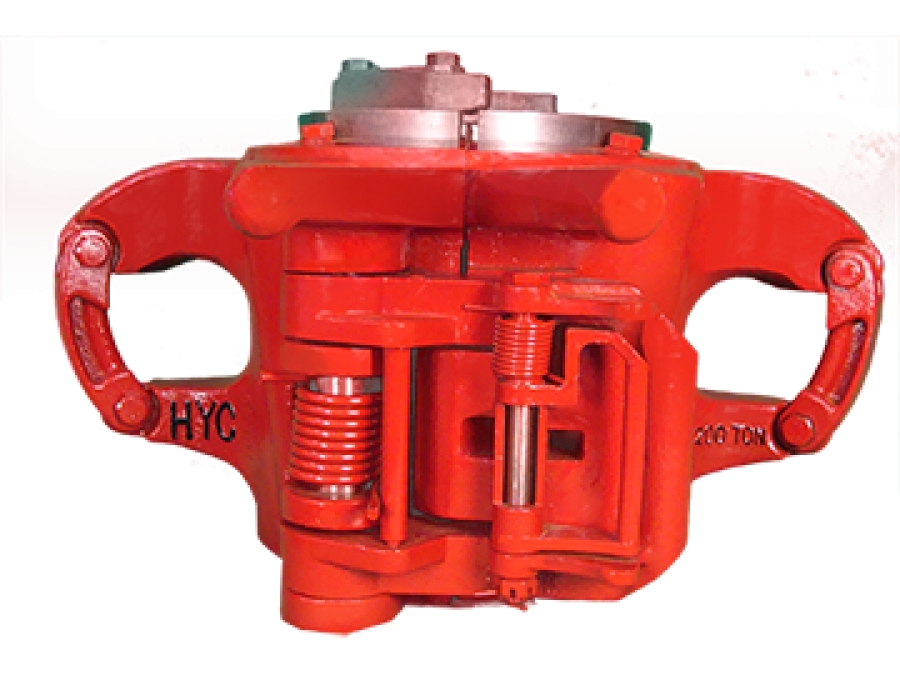

  • shown HYC - 200 Ton - 3-1/2" - 7-5/8"
  • available:
    • LYT 1.05" - 11/16"
    • MYT 1.315" - 2-7/8"
    • YT 1.315" - 3-1/2"
    • HYT 2-3/8" - 3-1/2"
    • YC 3-1/2" - 7"
    • MYC 3-1/2" - 7"
    • HYC 3-1/2" - 7-5/8"

  Size Rated Cap.
Model Size(in) Short Tons
HYT 23/8-31/2 150
YT 1.315-31/2 75
MYT 1.315-27/8 40
LYT 1.05-11/16 20
HYC 31/2-75/8 200
MYC 31/2-7 125
YC 31/2-7 75
