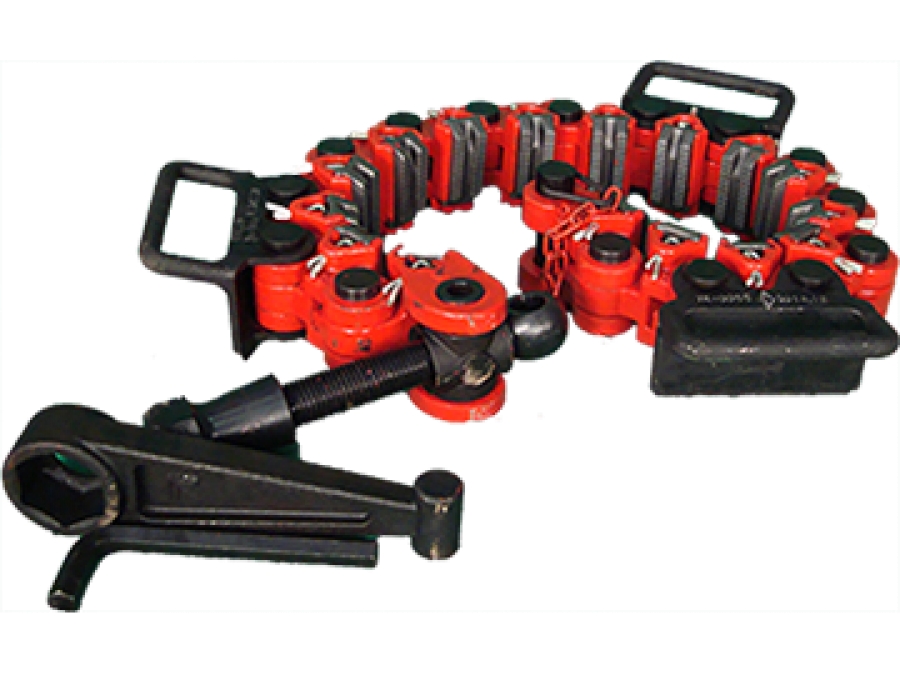

Type C Safety Clamps
Type “C” Safety Clamp is one of the most valuable tools on the Rig Floor. It helps guard against dropping flush-joint pipe, streamlined drill collars, etc. into the hole while making-up or breaking-out the string.
- Available to 12-1/2" - 13-5/8"
| Type | Pipe O.D. (in) | No. of Chain Links |
| WA-C | 3-1/2 - 4-5/8 | 7 |
| 4-1/2 - 5-5/8 | 8 | |
| 5-1/2 - 6-5/8 | 9 | |
| 6-1/2 - 7-5/8 | 10 | |
| 7-1/2 - 8-5/8 | 11 | |
| 8-1/2 - 9-5/8 | 12 | |
| 9-1/2 - 10-5/8 | 13 | |
| 10-1/2 - 11-5/8 | 14 | |
| 11-1/2 - 12-5/8 | 15 | |
| 12-1/2 - 13-5/8 | 16 | |
| 13-1/2 - 14-5/8 | 17 | |
| 14-1/2 - 15-5/8 | 18 |
Type T Safety Clamps
Type “T” Safety Clamp is designed for small diameter pipe 1 1/8” - 4 1/2” O.D. Each link changes the effective working range approximately 1” in diameter. For sizes larger than 4 1/2” O.D., the Type “C” Safety Clamp should be used.
- Available to 4-1/2"
| Type | Pipe O.D. (in) | No. of Chain Links |
| WA-T | 1-1/8 - 2 | 4 |
| 2-1/8 - 3-1/4 | 5 | |
| 3-1/2 - 4-1/2 | 6 |
