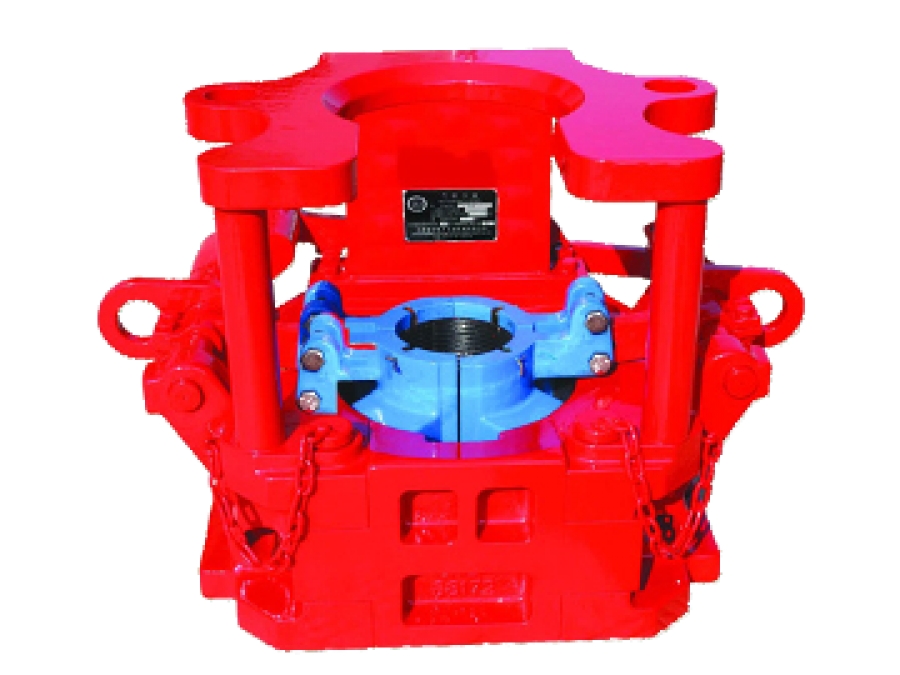

Type E Pneumatic spiders are utilized to handle drill pipe and tubing in oil well repair. This type of spider can accommodate pipe from 23/8 to 75/8 inch, the rated capacity is 175 tons.
Type | ||
E/175 Ton | ||
Slip Body Size (in) | Pipe Size | Cylinder Work Pressure |
in | psi | |
3-1/2 | 2-3/8 | 87-130 |
2-7/8 | ||
3-1/2 | ||
5-1/2 | 4 | |
4-1/2 | ||
5 | ||
5-1/2 | ||
7 | 6-1/4 | |
6-5/8 | ||
7 | ||
7-5/8 | 7-5/8 |
