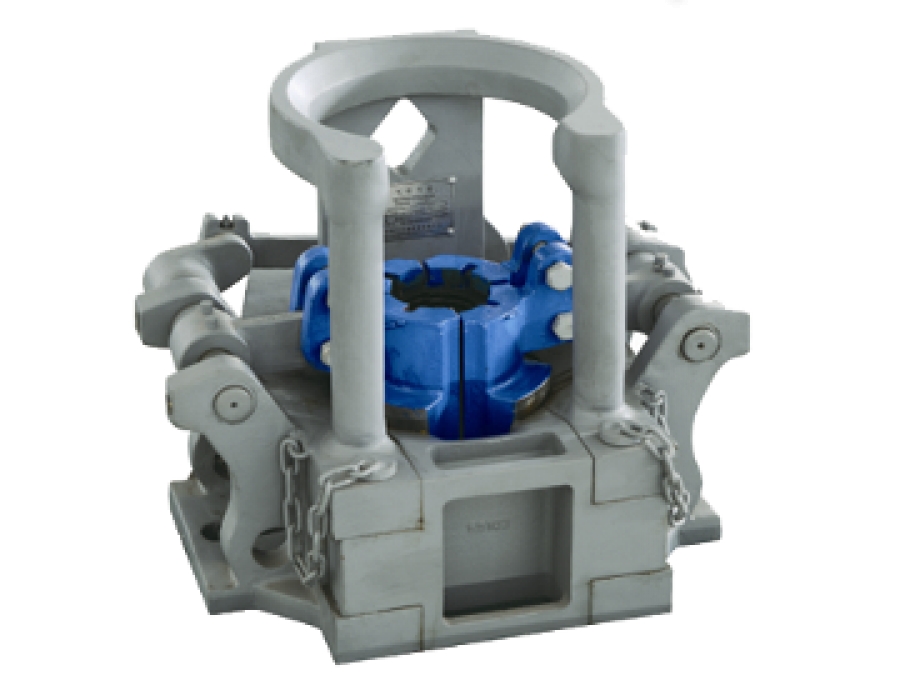

Type C/CHD Pneumatic spiders are used to handle drill pipe and tubing in oil well repair. This type of spider can accommodate pipe from 1.315 to 5 1/2 inch, the rated capacity of type C Spider is 80 tons, and the rated capacity of type CHD Spider is 120 tons.
Lib Body Size (in) | Handle O.D. | Cylinder Working Pressure | |
C/80T | CHD/120T | ||
in | in | psi | |
2-1/16 | 1.315 | 1.315 | 87-130 |
1.66 | 1.66 | ||
1.9 | 1.9 | ||
2-1/16 | 2-1/16 | ||
3-1/2 | 2-3/8 | 2-3/8 | |
2-7/8 | 2-7/8 | ||
3-1/2 | 3-1/2 | ||
4-1/2 | 3-1/2 | 3-1/2 | |
4 | 4 | ||
4-1/2 | 4-1/2 | ||
5 | 5 | 5 | |
5-1/2 | 5-1/2 | 5-1/2 |
