TA-Series

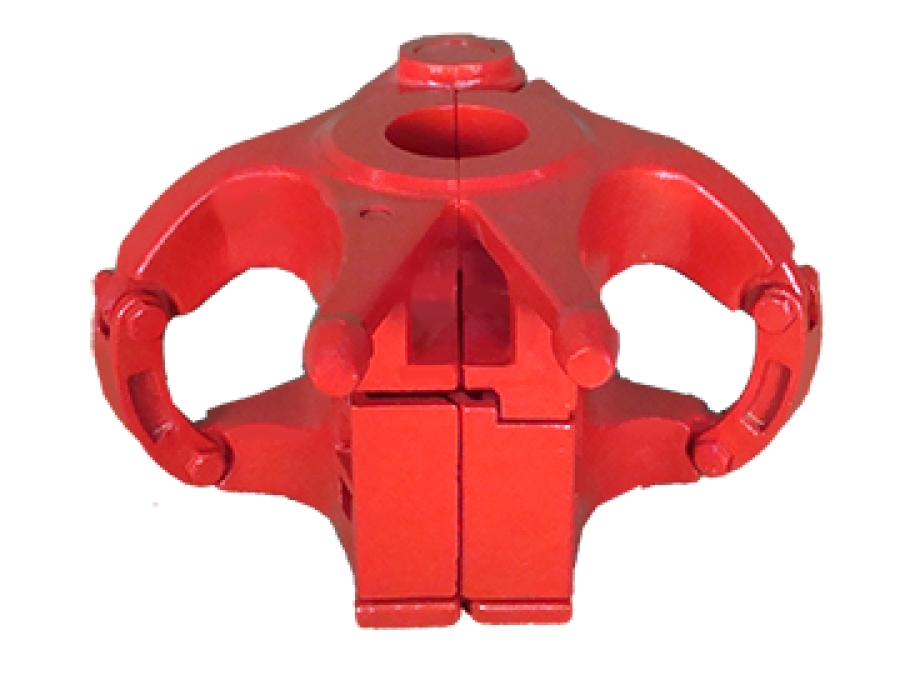

Model TA center latch elevators with square shoulder are suitable for handling, drill collar, casing and tubing. The products are designed and manufactured for Drilling and Production Hoisting Equipment.
Size (in) | Rated Cap. | ||||
Tubing | Tubing | ||||
Model | DC | NU | EU | Casing | (Short Tons) |
TA-35 | 27/8-31/8 | 1.05-27/8 | 1.05-27/8 | / | 35 |
TA-65 | 27/8-31/8 | 1.66-27/8 | 1.66-27/8 | / | 65 |
TA-100 | 31/8-51/4 | 23/8-5 | 23/8-41/2 | / | 100 |
TA-150 | 41/8-111/4 | / | / | 41/2-103/4 | 150 |
