250 Ton Elevator / Spider

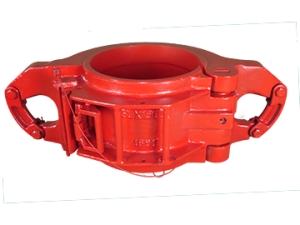

X Series • Side Door Elevator

SLX side door elevator with square shoulder is suitable for handling tubing, casing, drill pipe and drill collar in oil and natural gas drilling, well construction.

• SLX 150 - 13-3/8", 9-5/8", 7", 5", 4-1/2"
• SLX 250 - 13-3/8", 9-5/8", 7", 5", 4-1/2"
• SLX 350 - 4-1/2" thru 20"
• SX 500 - 9-5/8" thru 36"

Y Series • Slip Type Elevators

The slip type elevator is an indispensable tool in holding and hoisting drilling pipes, casing and tubing in the oil drilling and well tripping operation. It’s especially suitable for the hoisting of integrated tubing sub, integral joint casing and electric submersible pump column.

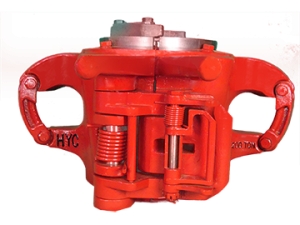

• shown HYC - 200 Ton - 3-1/2" - 7-5/8"

• available:
  • LYT 1.05" - 11/16"
  • MYT 1.315" - 2-7/8"
  • YT 1.315" - 3-1/2"
  • HYT 2-3/8" - 3-1/2"
  • YC 3-1/2" - 7"
  • MYC 3-1/2" - 7"
  • HYC 3-1/2" - 7-5/8"

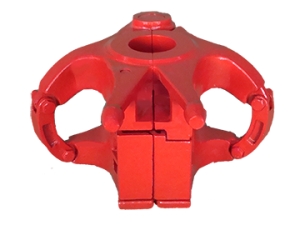

Single Joint Elevator

SJ Series auxiliary elevator is mainly used as a tool in handling single casing or tubing in oil and natural gas drilling and cementing operation. The products are designed and manufactured for Drilling and Production Hoisting Equipment.

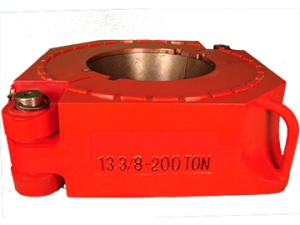

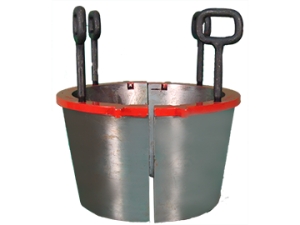

200 Ton Hinged Casing Spider Bushing

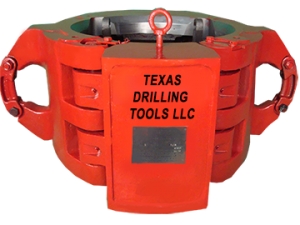

200 Ton Hinged Spider

100 Ton API Bowl

Casing Bowl with 4" Taper

• 100 Ton - 8-5/8" API Bowl
• 200 Ton - 10-3/4" Bowl

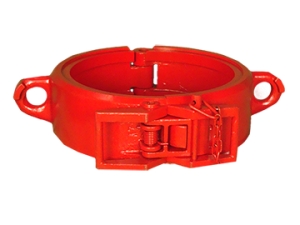

TA-Series

Model TA center latch elevators with square shoulder are suitable for handling, drill collar, casing and tubing. The products are designed and manufactured for Drilling and Production Hoisting Equipment.

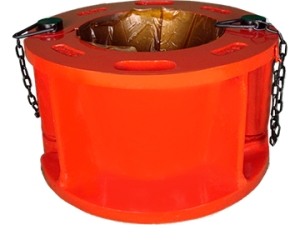

TS 100 Tubing Spider

TS-100 Tubing Spider and Slip Assembly can accommodate tubing sizes from 3/4" to 3-1/2" OD simply by changing the 9 removable inserts.
